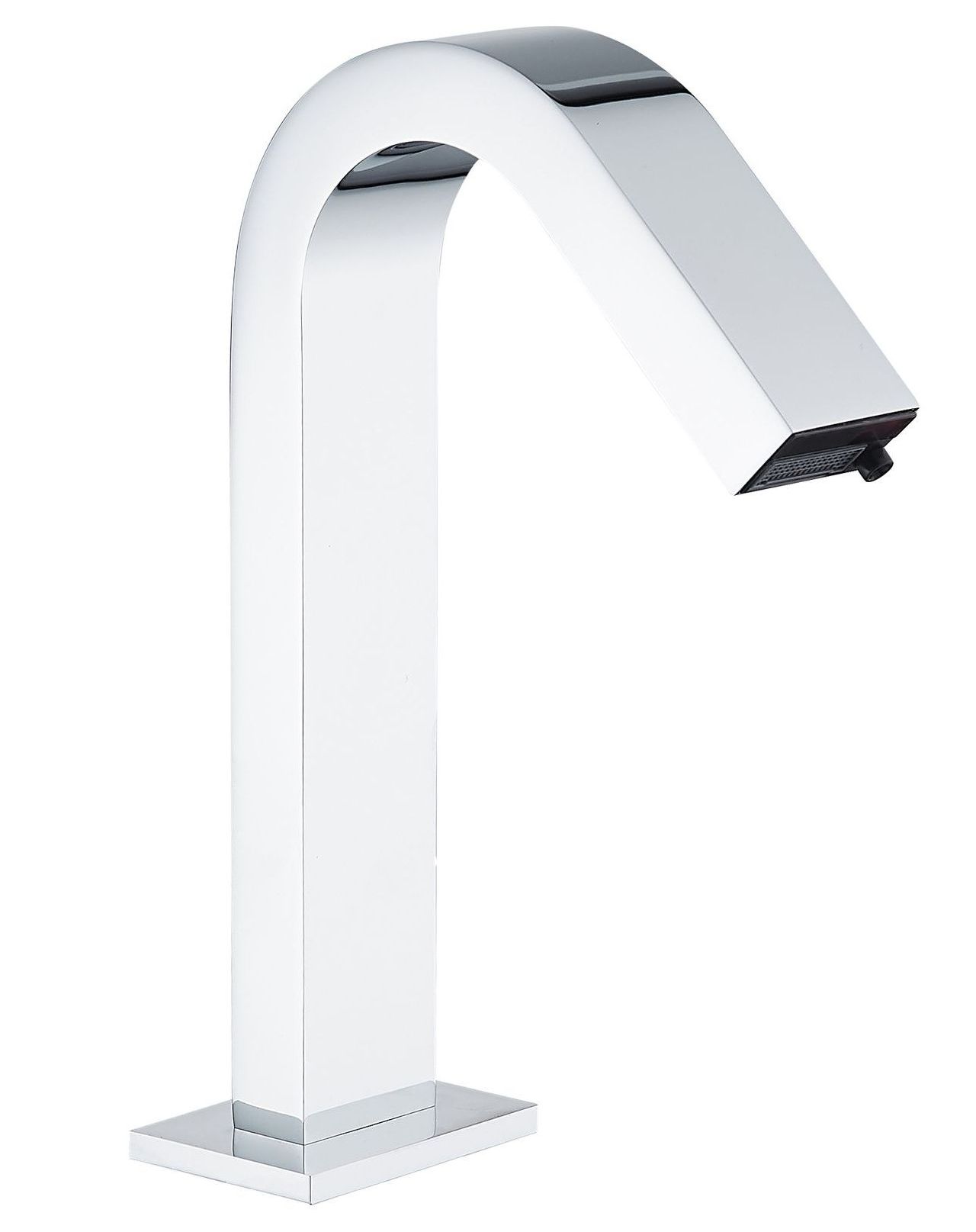

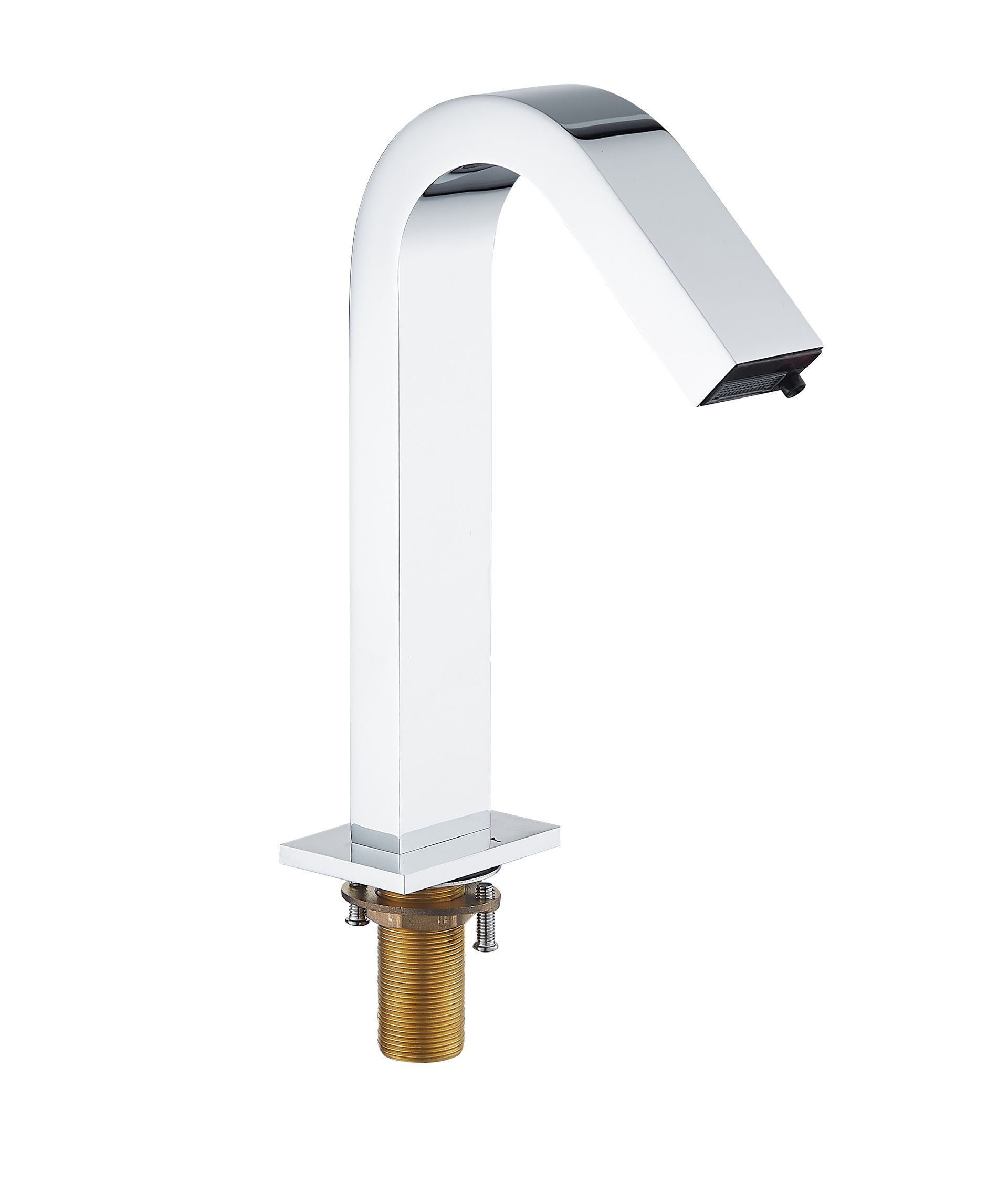

The DUET tap series sets the new benchmark for public restroom solutions. With the first actuation of the Smart Tap, soap is released and afterwards a smooth water flow for a clean, hygiene, and efficient handwashing.

Product Specification

• Finishes Chrome, Matt Black, or  Stainless Steel
• Deck mounted
• Easy installation
• Vandal-resistant
• Hidden Aerator  1.9 lpm / 0.5 gpm
• Sensor Unit Hidden

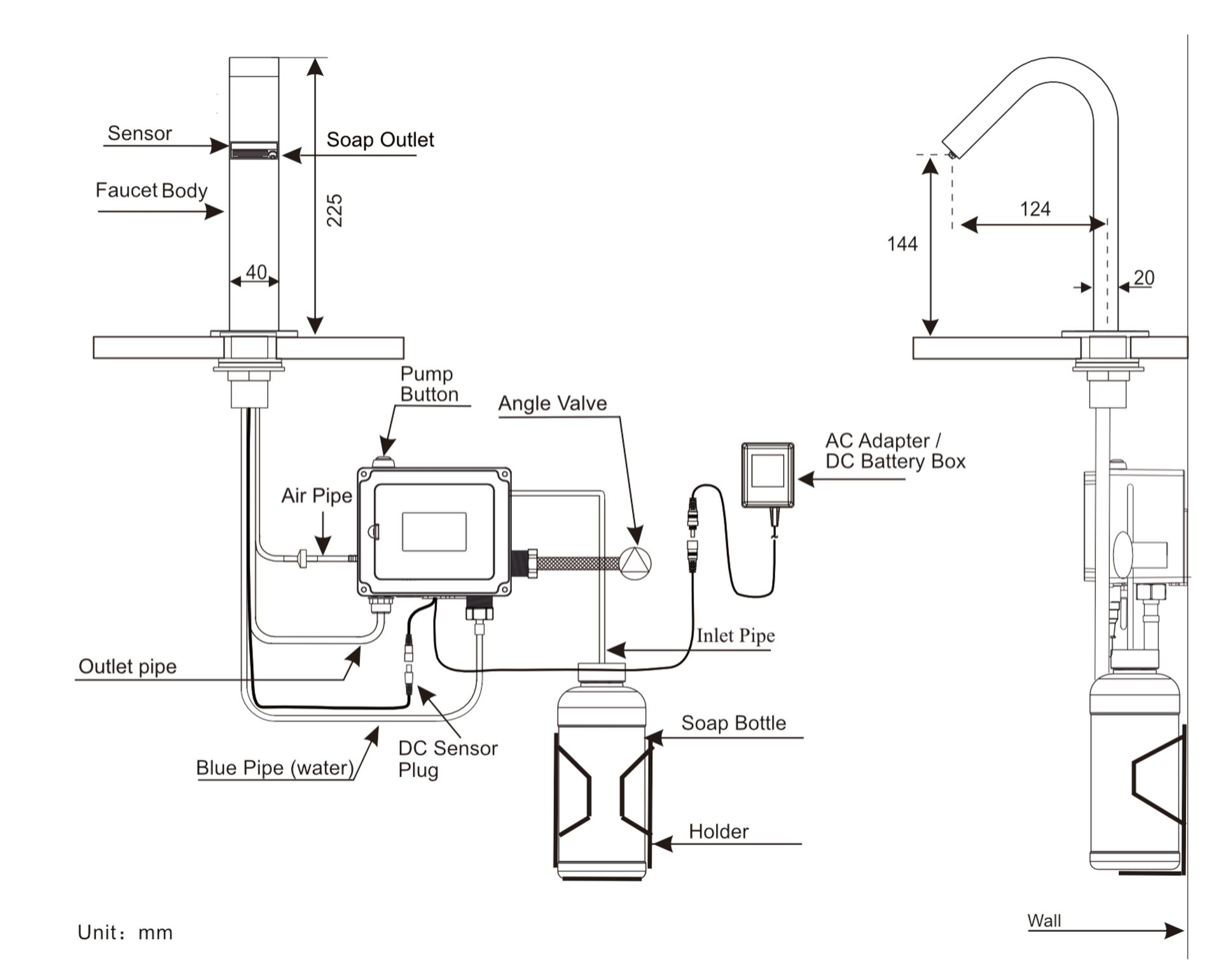

• Spout reach 124mm
• BLUETOOTH enabled

Water Parameters

• Max. continuous flow 60 sec
• Water ON  0.4 sec
• Water OFF  1.5 sec
• Sensing range 200 - 350 mm
• Water pressure 0.1 – 0.8 MPa static
• Ambient temperature 1 – 55 °Celsius

Foam Soap Parameters

• Soap discharge time 2 sec
• Soap discharge 1.5ml/sec at 1000 cps
• Optimal soap viscosity 1000 – 3500 cps
• Soap bottle 1.0 L

Product Configuration Options

• PVD Surface Finishes
• Soap Bottle with different volume
• Antibacterial Liquid Soap
• Fittings (Drainer, P-Trap, Angle Valve, Connection Hose)

Compliant with

• Chrome surface: pass 24h Acid Salt Spray Test
• WRAS
• LEED
• WELS 3 Ticks

Product Group Code: F207F-D
